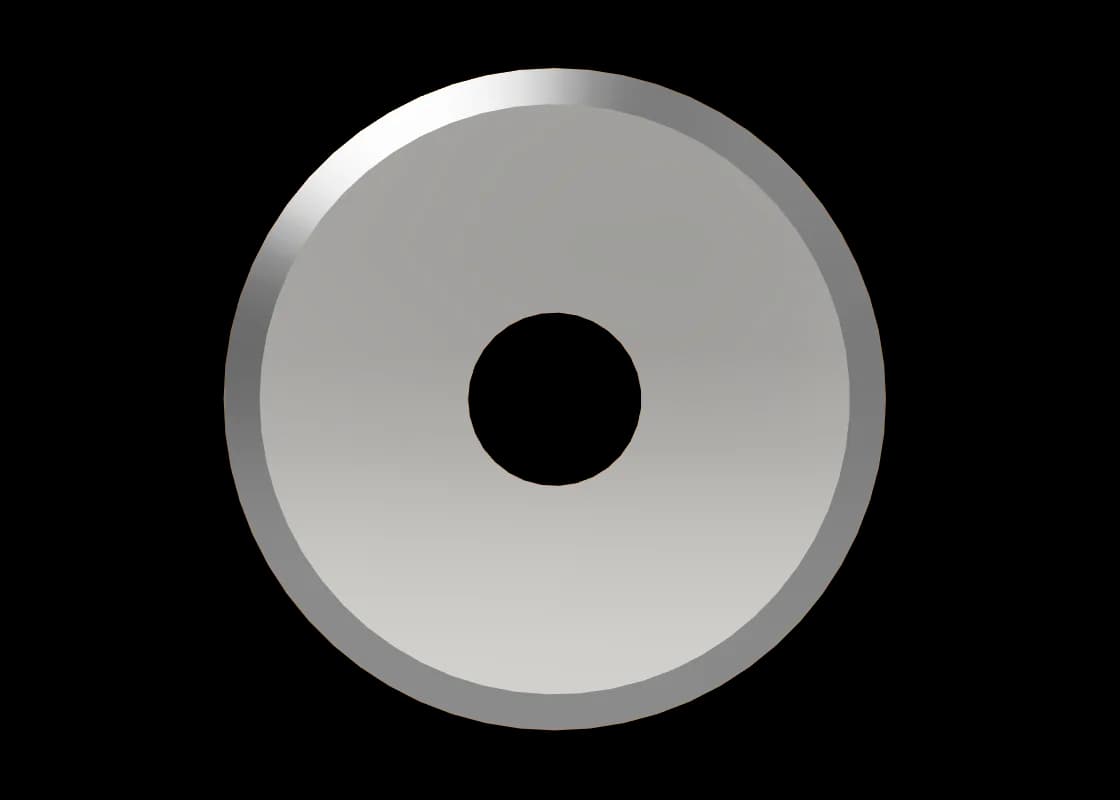

Smooth Edge Circular Blade, Double Bevel

Smooth-edge circular blade with a double bevel for fast, accurate cutting of film, paper, textile, rubber and food, from Ø25 to 500 mm.

Price: On request

Blades are manufactured to order, so pricing depends on geometry, material and quantity. Submit a pre-order and we will respond with a quotation.

Order now Ask an engineer

Category: Circular Blades
Indicative lead time: 5–7 weeks
Available materials: HSS (M2), Tungsten carbide, Stainless (AISI 420 / 440C), D2 / 1.2379

Key features

Double bevel for a symmetrical cut and a long-lasting edge
Ø25–500 mm diameter, 10–100 mm bore, 0.3–5 mm thickness
HSS, tungsten carbide, stainless steel or tool steel
Straight, serrated, scalloped or perforated edge profiles
Prototype to series production, with technical support

Technical specifications

Custom sizes available

Material	D2 (1.2379), M2 HSS (1.3343), Tungsten Carbide, Stainless / 420, Stainless / 440C (1.4125)
Coating	Uncoated, TiN, DLC, Teflon
Outer diameter	25–500mm
Bore	10–100mm
Thickness	0.3–5mm
Edge geometry	Double bevel

Description

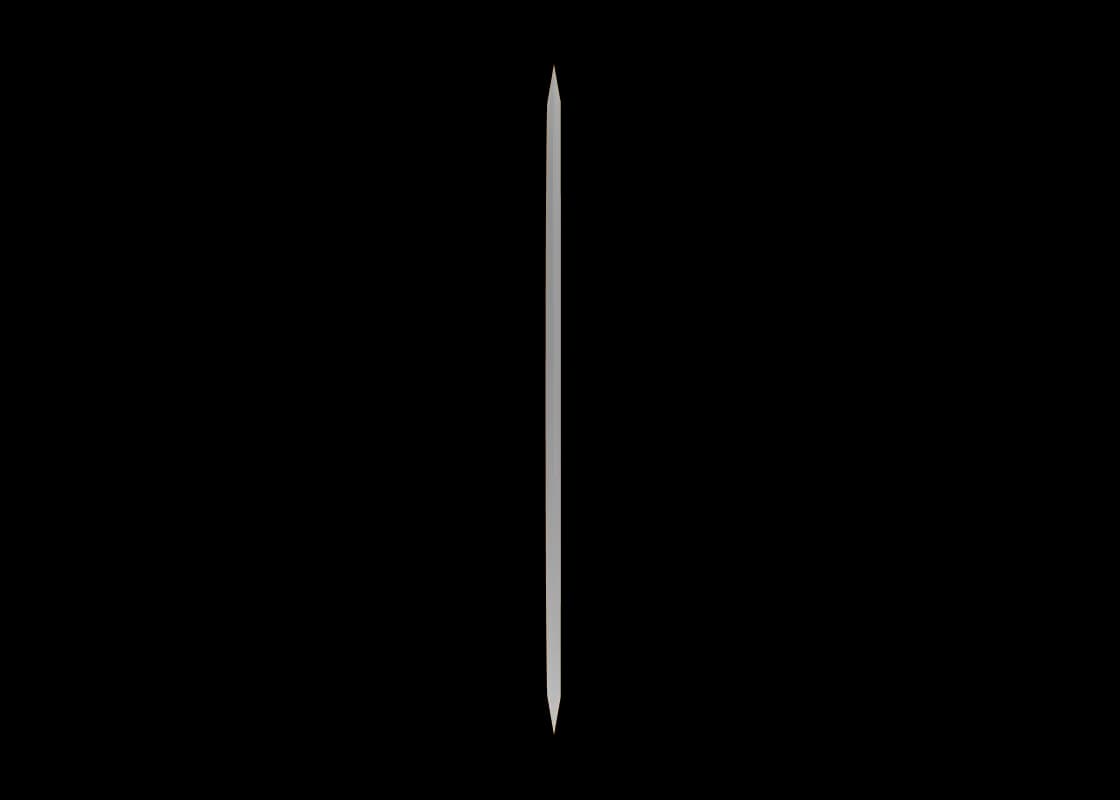

A double bevel grinds the edge from both sides, so the blade cuts symmetrically and holds a fine edge through long production runs. It is made from Ø25 to 500 mm, with bores from 10 to 100 mm and thicknesses from 0.3 to 5 mm.

Offered in HSS, tungsten carbide, stainless steel and tool steel (D2, K110), with straight, serrated, scalloped or perforated edge profiles where the job needs them. Optional coatings and surface finishes lower friction and adhesion and extend blade life.

Manufacturing

Diameter, bore, thickness and edge profile are finished to your drawing, the edge is ground after heat treatment, and every blade is inspected before dispatch.

Frequently asked questions

Can you match a blade from a worn sample without a drawing?

Yes. Send the sample and we will measure it, confirm the geometry with you, and quote from there.

Which material and coating should I choose?

It depends on what you cut and how fast. Tell us the material, line speed and current blade life and we will recommend a grade and coating with the quote.
