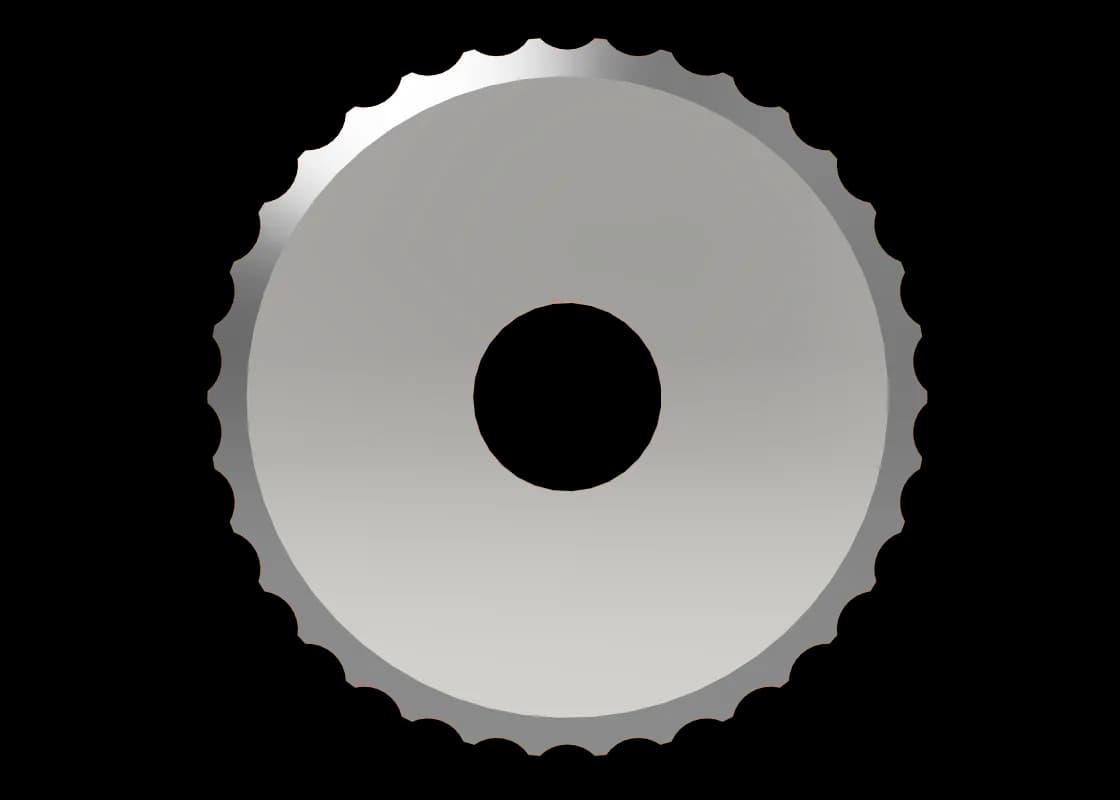

Scalloped Circular Blade
Circular blade with a wave-shaped edge that reduces drag and material distortion when cutting soft, fibrous or elastic webs.
Price: On request
Blades are manufactured to order, so pricing depends on geometry, material and quantity. Submit a pre-order and we will respond with a quotation.
- Category
- Circular Blades
- Indicative lead time
- 5-7 weeks
- Available materials
- D2 / 1.2379, HSS (M2), Stainless (AISI 440)
Key features
Scalloped wave edge reduces drag and tearing- Wave pitch and depth matched to your material
- HSS, D2 or stainless steel
- Optional coating for sticky or corrosive materials
- Ground after heat treatment to hold the wave profile
Technical specifications
Custom sizes available
| Material | D2 (1.2379), M2 HSS (1.3343), Stainless / 420, Stainless / 440C (1.4125) |
|---|---|
| Coating | Uncoated, TiN, DLC, Teflon |
| Outer diameter | 60–300mm |
| Bore | 12–80mm |
| Thickness | 1.0–3.0mm |
| Edge geometry | Scalloped wave edge, pitch and depth to your material |
Description
The scalloped edge — a shallow wave ground around the circumference — bites into soft or stretchy material without the tearing a plain edge can cause, making it the usual choice for food, foam and elastic nonwoven webs.
Wave pitch and depth are set to your material rather than taken from a standard, so the blade is grooved specifically for what it will cut. Offered in HSS, D2 or stainless, with a coating where sticking or corrosion is a concern.
Manufacturing
The wave profile is ground after heat treatment so its geometry holds through the blade's working life, then the bore, diameter and thickness are finished to your drawing and inspected before dispatch.
Frequently asked questions
Can you match the wave profile of a blade we already use?
Yes. Send us a sample or the pitch and depth measurements and we will reproduce the profile, or refine it if it is not cutting cleanly.
Is the scalloped edge available on both sides for a double-bevel blade?

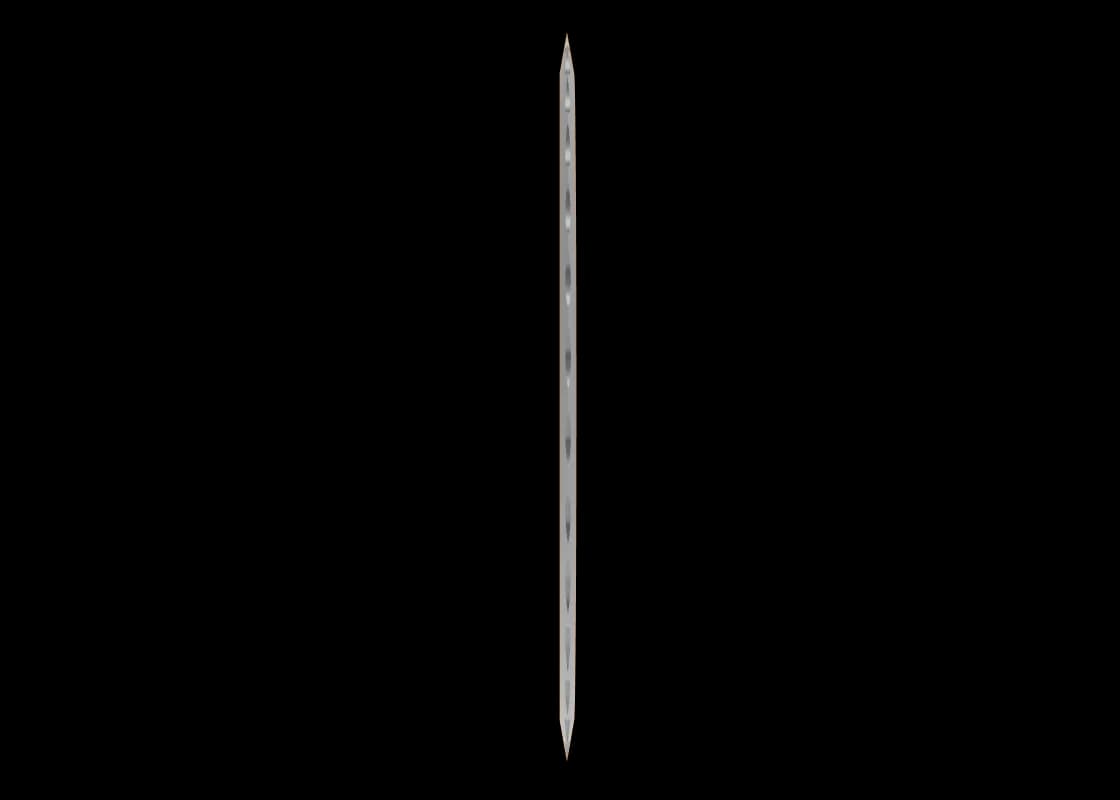

Yes, a double bevel scalloped edge is available where a symmetrical cut is required.
